Wind and solar farm maintenance is marked by dispersed assets, sometimes challenging working conditions and generation that depends directly on asset condition. For maintenance managers, it is essential to focus efforts where failures have the greatest impact. An effective organization starts with a clear, shared identification of critical assets.
Key takeaways
- The performance of wind and solar farms depends first on a rigorous prioritization of assets, based on production impact, accessibility and intervention costs, to focus efforts where failures have the most consequences.
- Appropriate maintenance plans combine preventive, condition-based and regulatory requirements, taking into account weather constraints, site access and multi-site coordination to secure asset availability.
- Reducing unplanned downtime relies on structured use of field data, failure histories and, for the most sensitive assets, predictive or anticipatory maintenance approaches.
- The CMMS structures the whole process, centralizing assets, interventions, performance indicators and HSE traceability to manage maintenance in a consistent, objective and lasting way.
How to identify and prioritize critical assets in a wind or solar farm?
In a renewable energy site, an asset’s criticality is measured primarily by its impact on production and the ability to intervene within controlled timeframes.
Identify components with a high impact on production
In a wind farm, the most sensitive assets are concentrated in the mechanical and electrical conversion chain:
- rotor and blades, subject to high mechanical and climatic stresses,
- gearbox (when present),
- generator,
- control systems and power equipment.
A failure in these assemblies typically causes the entire turbine to stop.
In a solar farm, criticality is expressed differently:
- individual photovoltaic modules have limited impact,
- inverters determine the output of multiple strings at once,
- transformers and connection equipment affect the overall availability of the site.
Conversion and connection assets therefore concentrate the main availability challenges.
Assess criticality using objective criteria
Asset prioritization is based on a structured analysis using several criteria:
- production impact: partial or total loss, immediate or progressive,
- accessibility: work at height, remote locations, weather constraints,
- intervention costs: special resources, lead times for parts, downtime duration.
This approach makes it possible to clearly distinguish:
- assets to be treated as a priority,
- those for which delayed intervention remains acceptable.
In some cases, this prioritization can rely on structured methods such as FMEA, enabling objective assessment of failure risks and prioritization of actions on the assets with the highest impact.
Structure asset mapping with the CMMS
The CMMS makes this prioritization operational:
- building a coherent technical tree from the site down to the component,
- assigning a criticality level to each asset,
- centralizing technical and functional data.
This mapping forms a shared baseline for maintenance teams and helps prioritize interventions.
“Thanks to DimoMaint MX, we centralize information, which allows us to plan and analyse our maintenance operations with a single, shared view.” — Fruytier Group (read the customer case study)
How to structure maintenance plans adapted to renewable energy?
Once critical assets are identified and prioritized, the challenge for maintenance managers is to define coherent maintenance plans suited to the specifics of wind and solar farms.
Define maintenance strategies adapted to the assets
Renewable energy sites combine several maintenance approaches, each addressing different objectives:
- Systematic preventive maintenance remains essential for assets subject to regulatory obligations or known wear. This includes mechanical inspections of turbines, electrical checks, and periodic verification of safety systems.
- Condition-based maintenance is growing in importance, especially for critical assets. Using sensor data (vibration, temperature, electrical currents) allows interventions to be adjusted based on the actual condition of components, avoiding overmaintenance.
- Regulatory inspections structure the maintenance calendar, notably for pressure equipment, electrical installations or personal protection devices.
The challenge is to combine these approaches coherently to secure asset availability.
Include weather and accessibility constraints in planning
Weather conditions directly affect the feasibility of interventions. Maintenance planning must integrate these parameters from the planning stage (grouping tasks, anticipating favourable periods).
Plan efficiently across multi-site parks with a CMMS
The CMMS plays a structuring role in organizing maintenance plans:
- it centralizes all preventive and condition-based operations,
- it allows adjusting intervention frequencies according to asset criticality,
- it facilitates coordination between multiple sites, internal teams and contractors.
With a consolidated view of the parks, maintenance managers can level workloads, anticipate required resources and avoid scheduling conflicts. Planning becomes an operational optimization lever, serving availability and cost control.
How to reduce unplanned downtime on wind and solar farms?
After structuring asset prioritization and implementing adapted maintenance plans, reducing unplanned downtime becomes a major operational objective. For maintenance managers, the goal is to turn field experience and technical data into anticipation levers.
Identify recurring causes of unavailability
On wind and solar farms, unplanned outages rarely happen by chance. They often stem from well-identified mechanisms:
- progressive failures not detected in time on conversion or transmission assets,
- intermittent electrical faults hard to diagnose without structured history,
- weather constraints delaying preventive interventions, which then turn into failures,
- urgent corrective interventions carried out under pressure, sometimes without root-cause follow-up.
The lack of a consolidated view of these events makes it difficult to identify failure patterns. Each incident is treated in isolation, without collective knowledge capture.

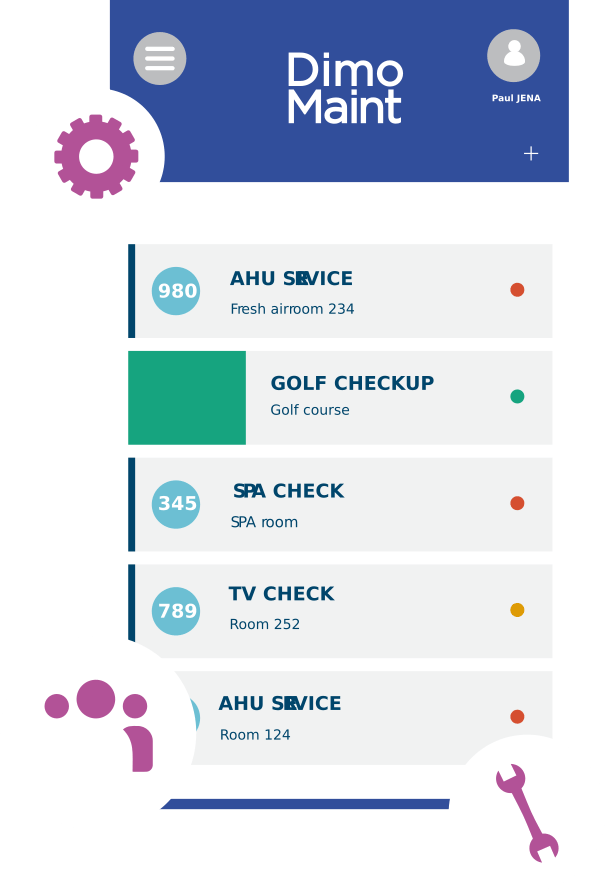

Use intervention and failure histories
Reducing unexpected outages relies on detailed analysis of past events. When intervention histories are correctly recorded, they make it possible to:
- spot assets with recurring failures,
- identify progressive degradation on certain components,
- measure the real effectiveness of corrective actions implemented.
The CMMS centralizes this information and organizes it over time. It provides continuity of knowledge even when teams or contractors change. This technical memory enables maintenance managers to move from a reactive mindset to an approach based on observable, measurable facts.
Anticipate failures to limit emergency interventions
Data-driven maintenance aims above all to reduce unpredictability. By cross-referencing failure histories, condition data and intervention frequencies, the CMMS enables:
- adjusting maintenance plans for the most exposed assets,
- triggering targeted actions before a complete shutdown occurs,
- scheduling interventions in favourable weather windows.
For the most sensitive assets, this approach can evolve towards predictive maintenance practices, using operational data and consolidated histories in the CMMS.
How to monitor maintenance performance of wind and solar farms?
Once unplanned outages are better controlled, maintenance managers need an objective view of actual site performance. Managing maintenance requires shared, comparable indicators that can be tracked over time.
Define indicators suited to renewable energy sites
Maintenance performance indicators should reflect both asset reliability and organisational effectiveness. In wind and solar farms, some indicators are particularly relevant:
- the MTBF (Mean Time Between Failures), used to assess failure frequency on critical assets,
- MTTR (Mean Time To Repair), directly affected by site accessibility and intervention preparation,
- availability rate, an indicator directly correlated to the economic performance of the installations,
- share of preventive maintenance versus corrective, revealing the level of anticipation achieved.
“We can track our preventive maintenance tasks and analyse key indicators such as MTBF and MTTR.”
— Thawat Kaewnarmmuang, Maintenance Manager (Thailand & India), Dextra
These indicators should be analysed over time to identify trends rather than isolated events.
Compare performance between sites and installations
The geographic dispersion of parks makes cross-site comparison particularly instructive. With equivalent assets, performance gaps can reveal:
- different maintenance practices,
- specific local constraints,
- design or operational defects on certain assets.
Structured comparison helps identify concrete improvement areas and spread best practices from one site to another.
Turn field data into actionable indicators with the CMMS
The CMMS plays a central role in this management approach. By structuring the recording of interventions, time spent and failure causes, it makes the data used to compute indicators reliable. Maintenance management thus becomes more objective.
How to secure interventions and ensure traceability in renewable energy parks?
Beyond technical performance, maintenance of wind and solar farms involves high safety and compliance requirements. Risk control and operational traceability become structuring dimensions of the maintenance organisation.
Manage risks related to interventions in constrained environments
Interventions on turbines or substations expose teams to specific risks:
- work at height and complex access,
- isolated sites and longer intervention times,
- multiple teams working together, including contractors.
Intervention preparation plays a decisive role. Procedures, permits and instructions must be clearly defined and accessible to all personnel. A structured organisation reduces emergency situations, which are often sources of risky behaviour.
Ensure regulatory and HSE compliance
Renewable energy parks are subject to many regulatory obligations: periodic checks, safety inspections, electrical verifications, and monitoring of certifications.
Ensure full traceability of interventions with the CMMS
The CMMS provides a structured response to these safety and compliance challenges. It enables:
- systematic recording of performed interventions,
- linking checks, documents and reports to the relevant assets,
- tracking certifications and permits of personnel,
- keeping an auditable history in case of inspection or incident.
This traceability gives maintenance managers confidence in their role. It contributes to better control of operational risks and strengthens overall asset reliability.
How does the CMMS become a lever for reliability and performance in maintenance of wind and solar farms?
Maintenance of wind and solar farms depends on a delicate balance between asset availability, intervention constraints and safety requirements.
The CMMS positions itself as a structuring tool to support this organisation. It transforms the complexity of multi-site parks into a coherent, shared view. By centralizing technical data, histories and indicators, it supports more anticipatory, controlled maintenance better aligned with production goals.
For maintenance managers, the CMMS is not limited to an operational tracking tool. It becomes a decision support system, fostering continuous improvement in asset reliability and better long-term control of risks and costs.
